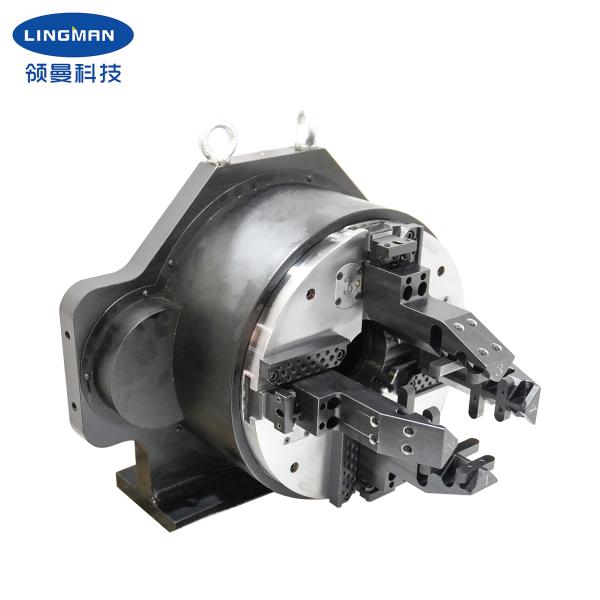

90mm Full Stroke Independent Chuck With Feed Pull Function And 4 Jaws For Tube Cut-Off Machine

Model Number : F90BF

Max. Clamping Force : 0.6KN

Packaging Details : Plywood Box

Center height : 200mm

MOQ : 1

Delivery Time : 10 days

Number of Jaws : 4

Limit Speed : 200R/Min

Supply Ability : 500 sets per month

Stroke : 86mm

Payment Terms : D/P, L/C, D/A, T/T, Western Union, MoneyGram

Application : Laser Cutting

Clamping Range : 5-91mm

Allowable Pressure : 0.2-0.9Mpa

Core Components : Bearing

Brand Name : Lingman

Weight : 102KG

Price : 1500 USD

Contact Now

1.Overview

Laser Chuck is a core functional component designed for fiber laser pipe cutting machines. It provides automatic centering, clamping, rotation and follow-up support for various profiles: round pipe, square pipe, rectangular pipe, oval pipe, angle steel, channel steel, H-beam, etc.

2.Parameter

90mm Full Stroke Independent Chuck With Feed Pull Function And 4 Jaws For Tube Cut-Off Machine

Item Specification
Model F90BF
Clamping Range Φ5 – Φ91mm
Through Hole 95mm
Drive Type Pneumatic / Servo
Repeat Accuracy ≤0.05mm
Rotation Accuracy ≤0.05mm
Max Speed 200 RPM
Working Pressure 0.4–0.8MPa
Application Round, Square, Special-Shaped Pipes

3.Product Line

90mm Full Stroke Independent Chuck With Feed Pull Function And 4 Jaws For Tube Cut-Off Machine

90mm Full Stroke Independent Chuck With Feed Pull Function And 4 Jaws For Tube Cut-Off Machine

4.Application

90mm Full Stroke Independent Chuck With Feed Pull Function And 4 Jaws For Tube Cut-Off Machine

Construction Furniture & Fitness Equipment Automotive Industry

5.Why Choose US?

✅ Over 12 years of manufacturing experience

✅ Professional R&D team

✅ Strict quality inspection before shipment

✅ Complete after-sales support

✅ OEM & ODM available

✅ Global customers trust our brand

6.Contact US

If you need catalog, quotation, sample or customization, please feel free to contact us now!

Email: sales56@lmjxkj.com

WhatsApp: +86 15961281158

Address: No.8-2 Dongfang East Road, Hengshanqiao Town, Changzhou Economic Development Zone, Jiangsu Province, China
